Magnification - 50x to 1000x.
Viewing Head - Trinocular Observation head conveniently inclined at 45 ̊.
Mechanical Stage - Large graduated mechanical stage with low drive co – axial controls for X–Y movements on the ball slides.
Focusing - Co – axial focusing module with slides travelling on bearing guide ways.
Illumination - Incident light through Epi – illuminator with field aperture diaphragm and filter slots. Continuously variable luminosity control through built in electronic transformer.
Nose Piece - Quadruple revolving nosepiece for quick magnification change with positive click stops for proper centering.
Objectives - Achromatic Flat – field metallurgical corrected and anti mount fungus M4x, M10x, M40x, & M100x (oil).
Eye pieces - Compensating High eye point wide field eye piece 10x.
Filters - Green & Blue.

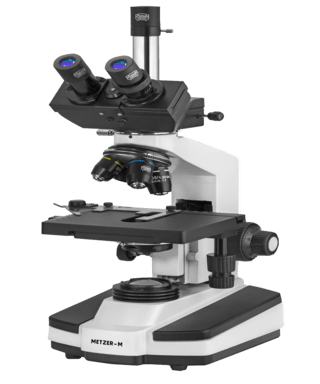

METZER - M CO-AXIAL TRINOCULAR RESEARCH METALLURGICAL MICROSCOPE VISION PLUS – 5000 TMM
